MOD3 - The Display
Click on an image to see a larger picture

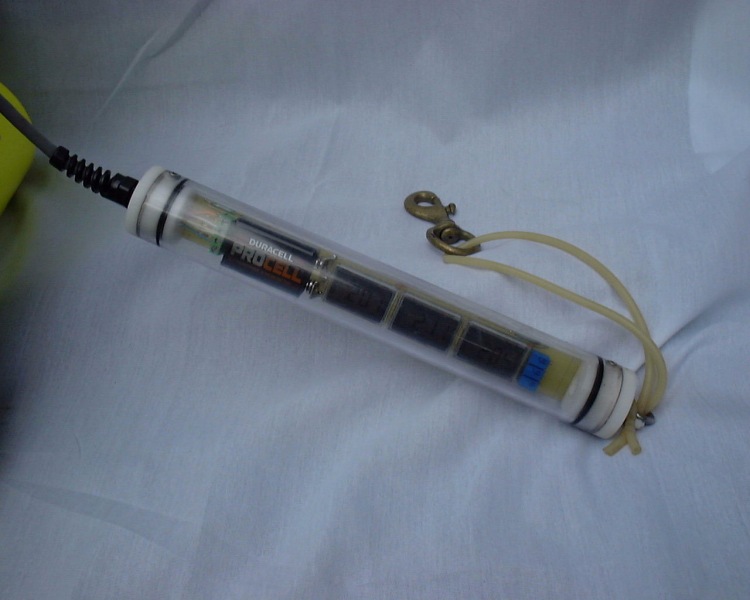

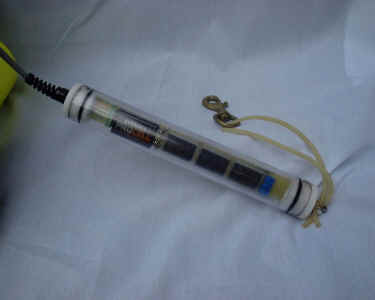

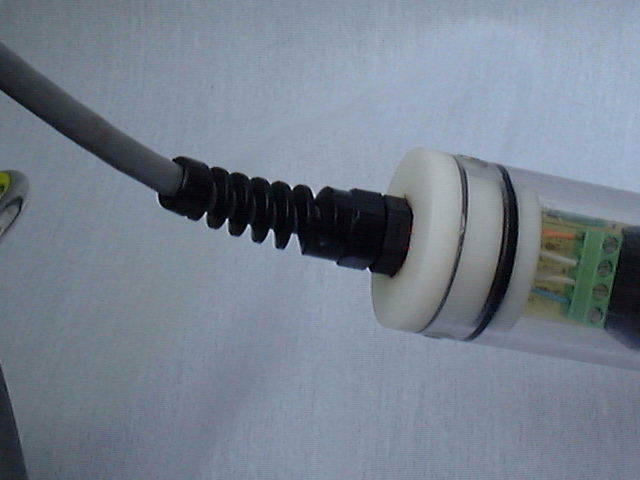

I decided to go with a 1 ATM housing this time.

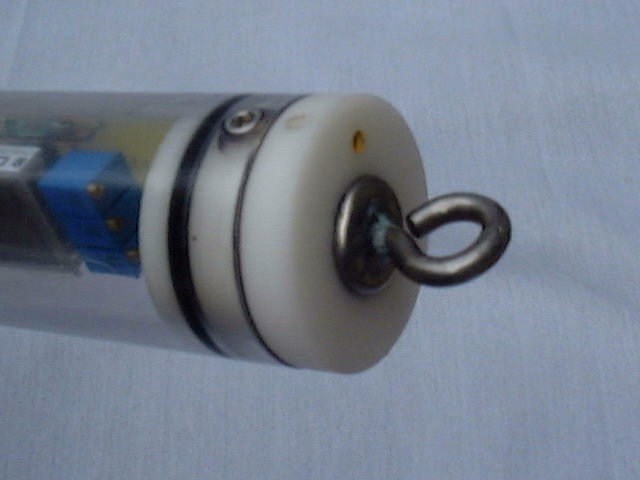

Access to the trim pots and an attachment point.

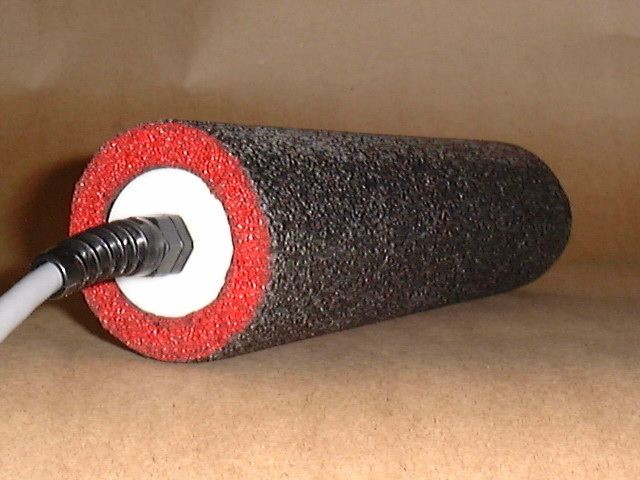

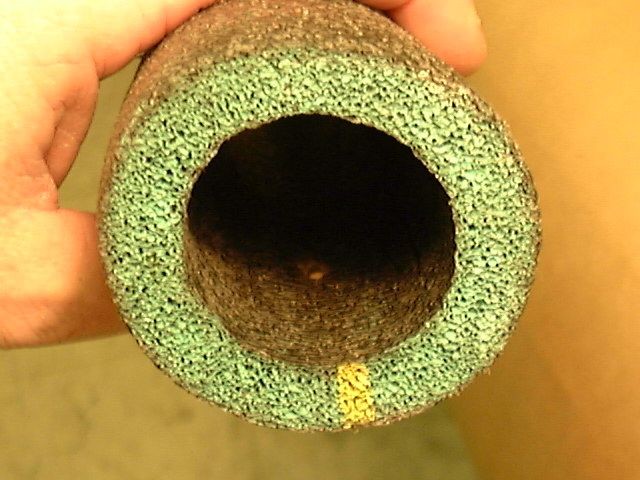

The protective cover that goes over the housing when not in use.  Note the magnet embedded inside the tube and inline with the yellow mark.

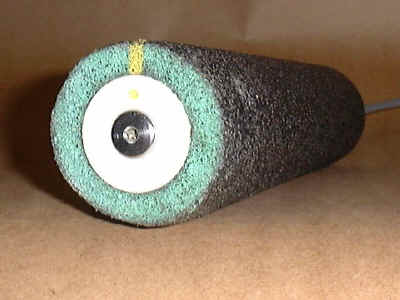

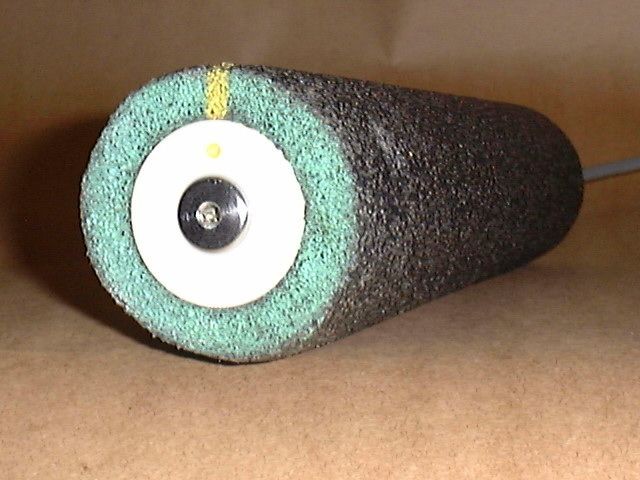

When you slide the protective cover on you should see green.  Line up the yellow dot on the housing with the yellow line on the cover to shut off display power.
